DESCRIPTION

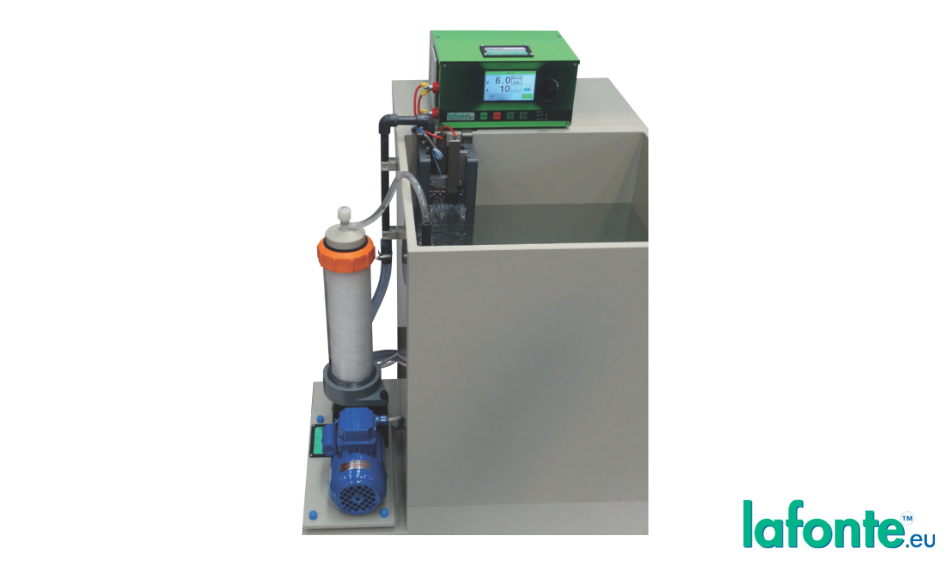

Precious metals recovery systems series REM Small are made for exhausted solution from various production processes from chemicals, plating, printed boards, general metal finish and jewellery sectors. Thanks to the recovered material and the low management costs, it becomes a source of income.

ADVANTAGES

• Quick payback time
• Recovery of up to 99% of precious metal, which is easy resellable
• Easy to use
• Low maintenance

FEATURES

• Small dimensions
• PPS flameproof made, which guarantees high chemical and alkaline resistance
• Extractor hood
• Titanium screws
• Mixed oxides anodes
• Titanium connections for anodes and cathodes

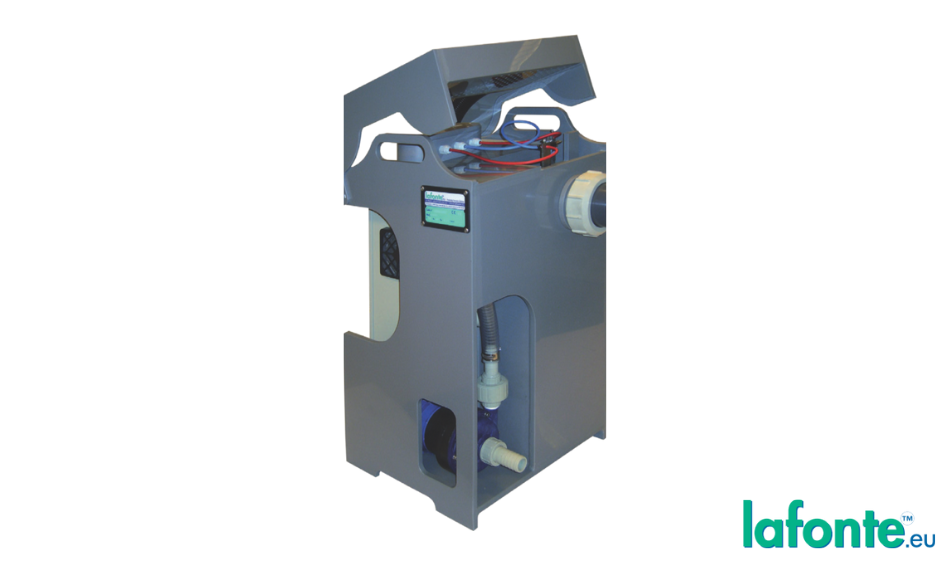

DESCRIPTION REM
series precious metal recovery systems are recommended in different production sectors, including: Chemical - Galvanizing - Photography - Printed circuit boards - Metallic surface treatments. Recovery of precious metals from spent solutions, left over after various production processes, constitutes a significant source of revenue with low operating costs.

ADVANTAGES

• Quick payback time
• Recovery of up to 9% of the precious metal
• Easy to use
• Minimal maintenance

  FEATURES
• Made in PP, which guarantees high mechanical and chemical resistance to both acid and alkaline solutions
• Compact size
• Titanium screws
• Mixed oxide anodes
• Titanium connections for anodes and cathodes


DESCRIPTION

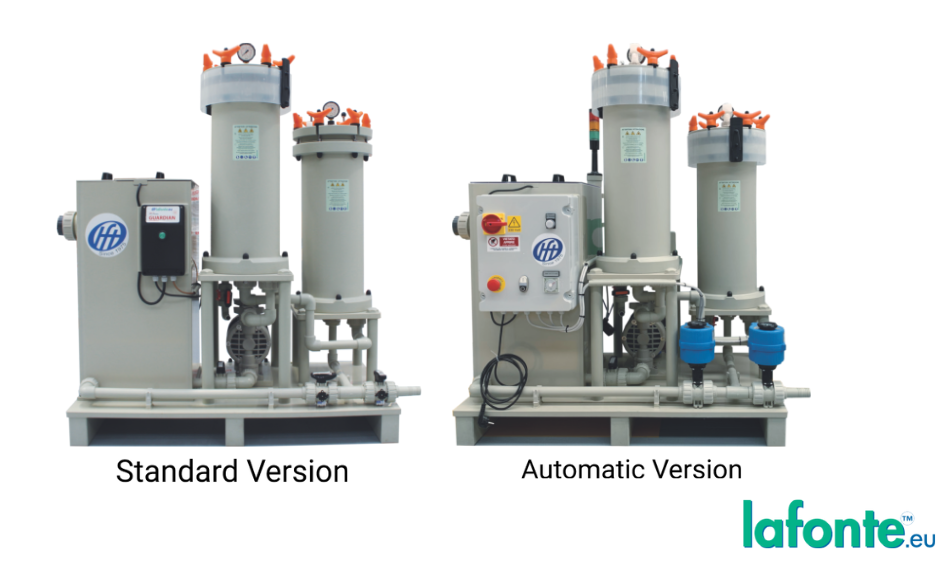

Precious metals filtering recovery systems series MFR are used to recover metal particles in water. It’s composed by a settlement tank and two or three filter housings connected in series, which could achieve 0,2 absolute micron filtration degree.

OPERATION
MFR is a centralized unit usually located at the end of the production line, where all the waste water of the prodcution processes will convey. The liquid flows into a settlement tank where it’s firstly filtrated by gravity and then automatically pumped under pressure in two or three filter housings, equipped with various filter media (bags, cartridges, discs), with a maximum of 0,2 µm filtration degree. Activating the Bypass valve, it is possible to optimize the recovery thanks to the recirculation of the liquid. This system is available also in automatic version.

ADVANTAGES

• Recovery up to 99% of the metal in solution.
• Quick payback time.
• Easy to use.
• Minimum maintanence.


DESCRIPTION

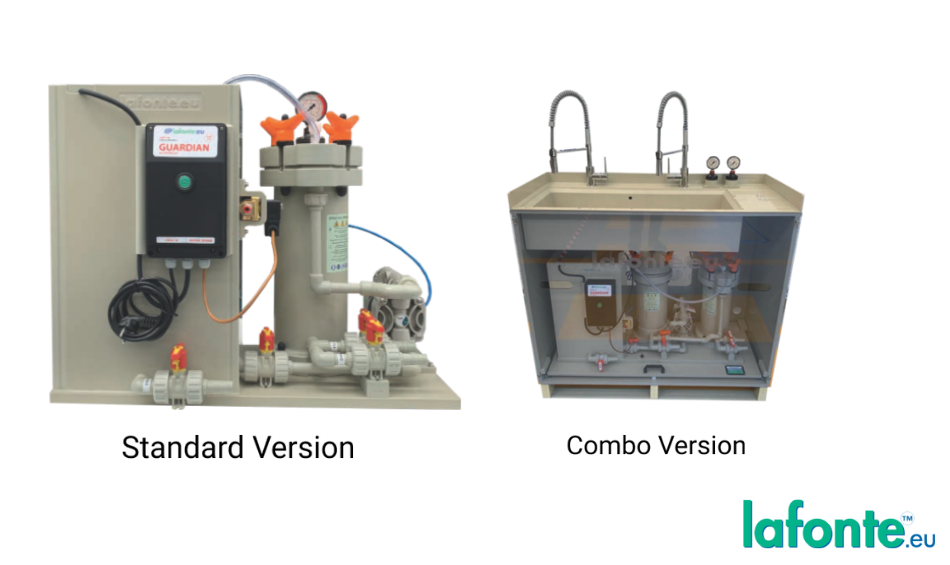

Standard version: Undersink is a precious metal recovery filtration system composed by a settlement tank and multi-stages filtration units connected in series that can reach 0,2 absolute micron. COMBO version: it’s available a COMBO version Sink+Undersink with single or multiple faucet stations, where for easy maintenance Undersink is assembled on a sliding base.

OPERATION
It’s generally located under sinks. Solution flows into a settlement tank, where metal is first recovered through gravity filtration and then pumped automatically under pressure in a single or multi-stages filter housing equipped with apposite media (bag, cartridges, discs), which can reach the maximum filtration of 0,2 µm. To select proper filter media, contact our sales office.

ADVANTAGES

• Recovery up to 99% of the metal in solution
• Quick payback time
• Easy to use
• Minimal maintenance
